Optiguard WET AR surface treatment is a cost effective alternative to the exclusive vacuum deposited Optiguard DRY AR. The performance of WET AR regarding light transmission and reflectance is good.
It has a accurate colour reproduction and is easy to clean, furthermore it has great chemical and abrasion resistance.
It is an excellent choice for a wide range of applications e.g. large window applications like information displays.
|Adhesion||Cross Hatch Tape Test||No coating removal|
|Pencil hardness||ISO 15184 – BS 3900 – E19||4-5H|
|Humidity||500 h, 60 °C, 95 % RH||No change|
|Thermal resistance||500 h, 80 °C||No change|
|Hot water||500 h, 60 °C||No change|
|Cleaning agents||Methyl and Ethyl Alcohol||No change|
|Light damage||Exposure to Xenon Lamp, 500 h||Pass|
|Salt water resistance||5 % NaCl spray, 35 °C, 28 days||Pass|

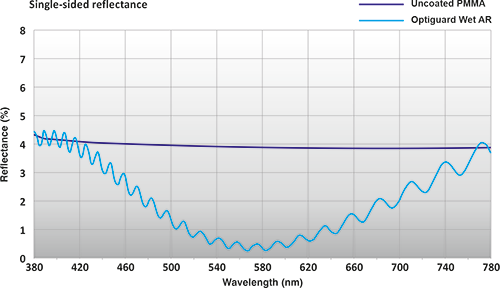

Spectral, optical and durability specifications are all measured values and not guaranteed.
|Acetone||Immersion for 1 min @ 22-25 °C and rinsing in distilled water before inspection||No change|
|H SO – 10 % solution||No change|
|HCI – 10 % solution||No change|
|Tensile strength (rupture)||75 MPa|
|Elongation at rupture||8%|
|Flexural strength (rupture)||120 MPa|
|Heat stability – Vicat||100 °C|
|Linear thermal exp. coefficient||0.07 mm/m °C ¹|
|Test Condition||Viewing distance 60 cm, illuminated with 20W fluorescent lamp (@ 40 cm).
Viewing conditions: Black background and ambient luminance < direct surface
|Foreign article, pinhole & bubble||Diameter (mm)||Permissible Number (pcs)|
|> 2.0 – < 4.0||1|
|> 0.5 – < 2.0||5|
|< 0.5||Not Rejected|
|Defect diameter represents the core of the defect|
|Burn, Dirt||Must not be visible under ceiling light|
|Reflectance Colour||Permissible in range between violet and blue violet|
Inspection level for 1200 x 1400 mm sheets

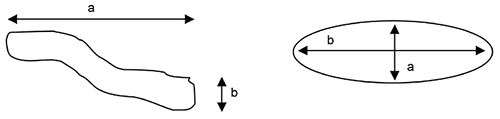

|Calculation of the defect|
|Applicable defect: Foreign article, Pinhole, Bubble
Calculation: Average Diameter = (a+b)/2
Inspection conditions for 1400 x 1200 mm sheets
The Vacuum AR treatment is also available in a Marine grade. This gives the material excellent salt water Resistance and high performance. The anti-reflection coating on the material is applied to both sides and enables full readability – even in the brightest direct sunlight.
The Optiguard™ AROL treatment has great saltwater resistance. Current applications include use in naval aircraft carriers, for stopping unwanted internal reflections when helping guide approaching pilots to the vessel.
